Engine:

Type: 3-Cylinder, Liquid-Cooled, Diesel, TC, CDI

Model (Tier 4): L3C19-T

Engine HP: 57 (gross)

PTO HP: 48.4 HYDR / 45.6

Gear Rated Speed (RPM): 2,600

Displacement (CU. IN): 114.7

Fuel Tank Capacity: 12.4 gal

(Cabin) / 10.6 (ROPS)

Accelerator V-A: 12 - 70

PTO:

Type: Independent

Rear RPM: 540

Hydraulic System:

Control System: Position/ Draft

Implement Pump (GPM): 8.2

Steering Pump (GPM): 4.1 Gear / 5.5 Hydro / 6.8 Hydro cab

Total Flow (GPM): 12.3 Gear / 13.7 Hydro / 15.0 Hydro Cab

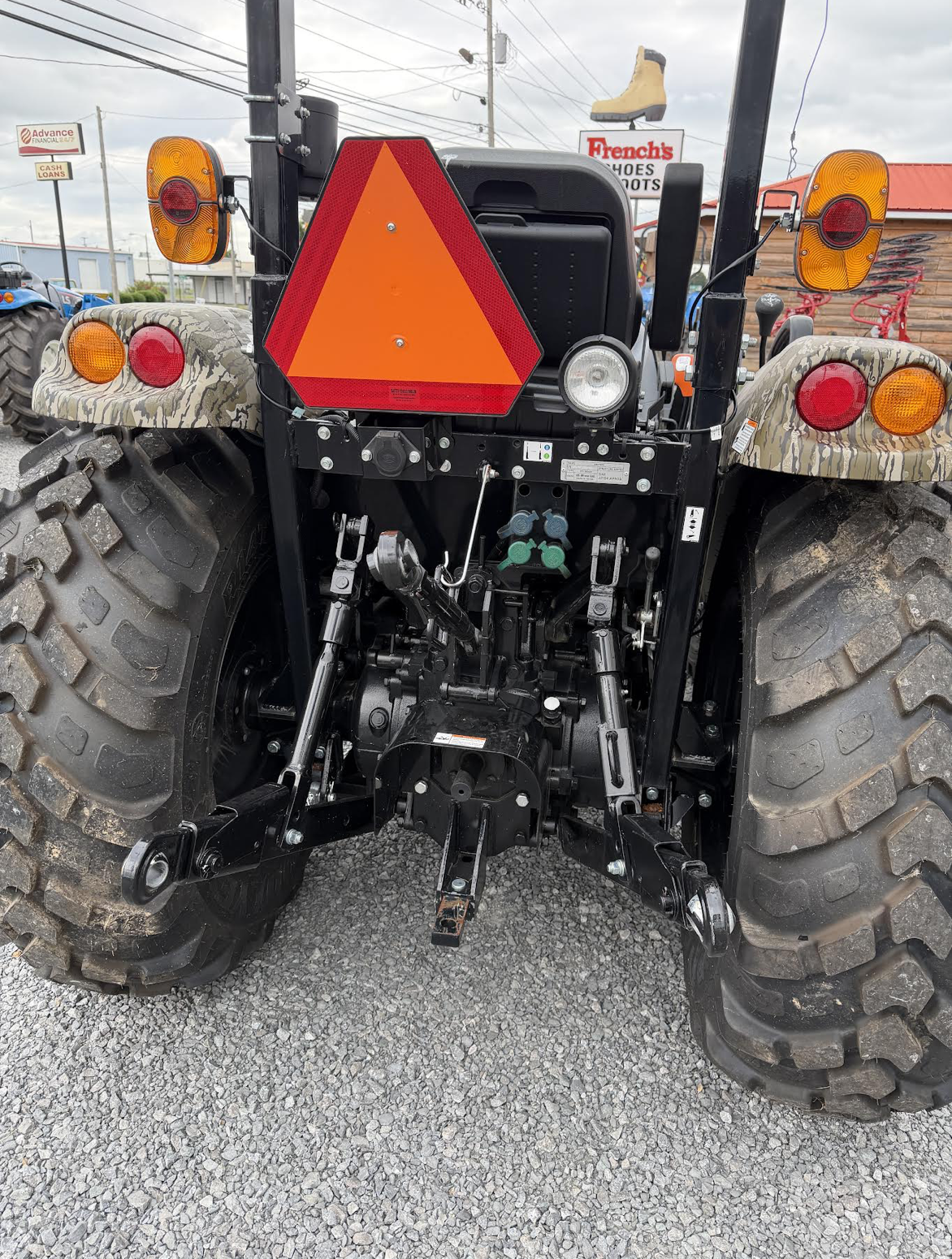

Category, 3-PT Hitch: CAT 2

Hitch Lift Capacity (LB): 2,755

Remote Valves: 2 Pairs (1 Dentent, 1 STD)

Tire Size:

AG (Front / Rear): 9.5 - 16 / 13.6 - 24

IND (Front / Rear): 12 - 16.5 / 17.5L - 24

Turf Tire (Front / Rear): 28 × 8.5 - 15 / 41 × 14 - 20

Drive Train:

Transmission: Synchro Shuttle / HST

No. of Speeds: F16 xR16 (Gear) / 3 Ranges (HST)

Brakes: Wet, Multi-disc

Dimension:

Overall Length, Bumper to Link: 133 in.

Wheelbase: 73.2 in.

Overall Width with Tires: 62.5 in.

Height to Top of ROPS (In.): 95 ROPS / 90 CAB

Weight:

Total weight without Ballast(Lbs.): 3,869 - 4,446 (CAB)
